Pathophysiology

Ventricular bigeminy   C9, C10, C11, C15, C25, C26, C27, R4

VEB's occurring singly but in the folowing minimum sequence of QRS complexes: "ANVNVA"; where A=Any Other Beat (Normal or Ectopic), N=NOrmal Sinus Beat, and V=VEB. Variations in coupling intervals and/or form do not preclude bigeminy

Rhythm Strip

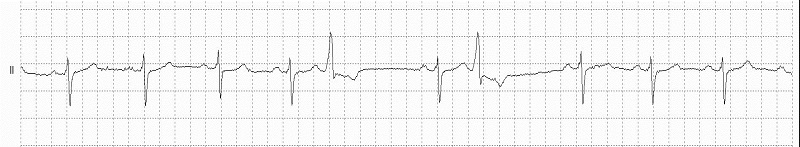

Ventricular Bigeminy Rhythm Strip

Ventricular Bigeminy

12 Lead EKG

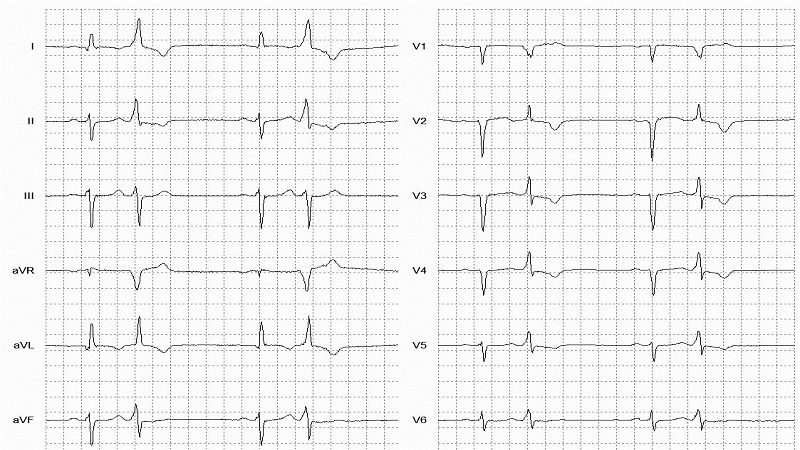

Ventricular Bigeminy 12 Lead EKG
