Ventricular Ectopic Beat (VEB)   C9, C10, C11, C15, C20, C25, C26, C27, C30

Ectopic impulses which are usually premature in relation to the expected impulse of the basic rhythm. QRS is abnormal in duration (>120ms) and configuration with accompanying ST segment and T wave changes. Not occurring on the T wave of the preceding beat. Typically followed by a compensatory pause. Retrograde capture of the atria may or may not occur.

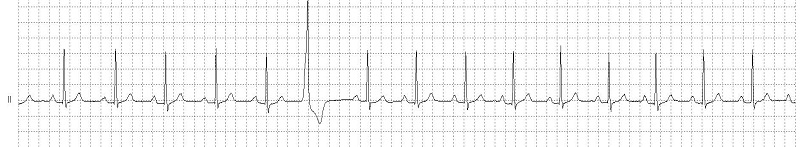

Rhythm Strip

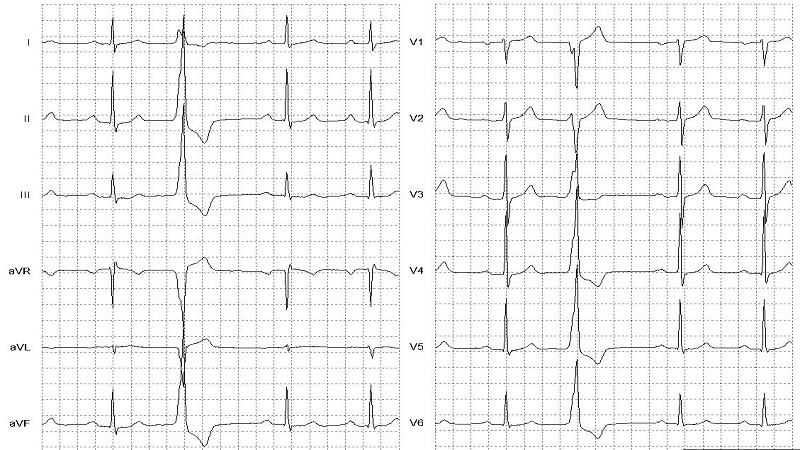

12 Lead EKG
