Pathophysiology

Sustained Ventricular Tachycardia C9, C10, C11, C15, C25, C26, C27 R15

An episode of ventricular tachycardia with a heart rate of greater than 120 beats per minute, persisting more than 30 seconds. In Monomorphic VT, all ventricular beats have the same QRS configuration. A right bundle branch block (RBBB) pattern is defined by a mono-, bi, or triphasic R wave or qR in V1; LBBB pattern is defined by a QS, rS or qrS in V1. In Polmorphic VT, ventricular beats may have multiple QRS configurations

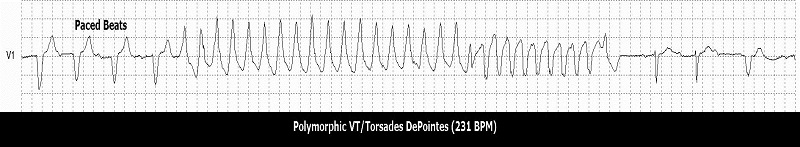

Rhythm Strip

Strip Title

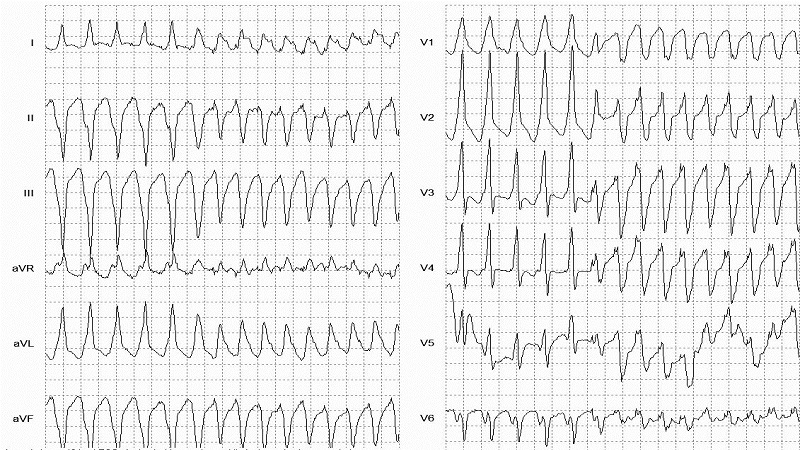

12 Lead EKG

12 Lead EKG Title
