|ST Depression (≥ 2mm)||R19|
The ST segment starts at the J point (the junction between the end of the QRS and the beginning of the ST segment) and ends at the beginning of the T wave. The normal ST segment is isoelectric; is essentially level with the PR and TP (baseline) segments, and has a duration of 0.080 to 0.120 secs. The shape and direction of the ST segment are the important indicators to measure along with T-wave changes when trying to determine myocardial ischemia/infarction. Significant ST depression in the Ambulatory ECG (A-ECG) is determined when the ST segment is ≥ 2mm below the baseline. When viewing a 12-lead A-ECG, reciprocal changes in the ST segments and T-waves among the leads should be noted.

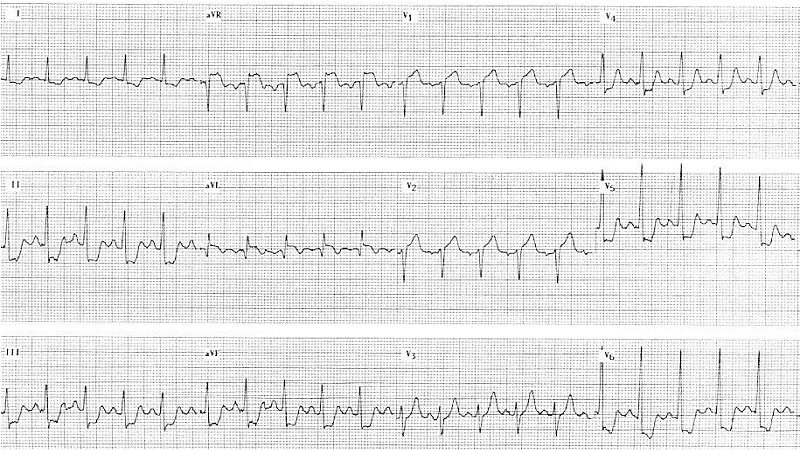

|12 Lead EKG|
