Pathophysiology

Nodal (junctional) escape beat

When the rate of depolarization of the sinoatrial node falls below the rate of the atrioventricular node, a depolarization from somewhere in the AV node will occur; either as a single escape beat, or as a series of escape beats (escape rhythm). P-wave morphology depends on the site of the ectopic focus, will be inverted; and may appear before, during, or after the QRS complex. If the P-wave occurs before the QRS complex, the PR interval will be less than 0.12 seconds. The QRS complex will usually be normal in duration and morphology.

Rhythm Strip

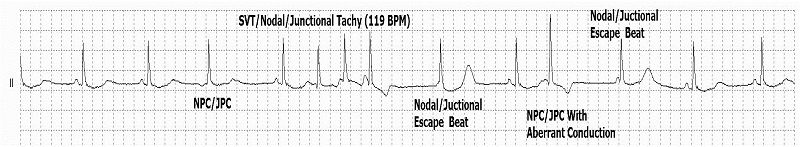

Nodal (junctional) escape beat Rhythm Strip

NPCs/JPCs and Nodal/Juctional Escape Beats

12 Lead EKG

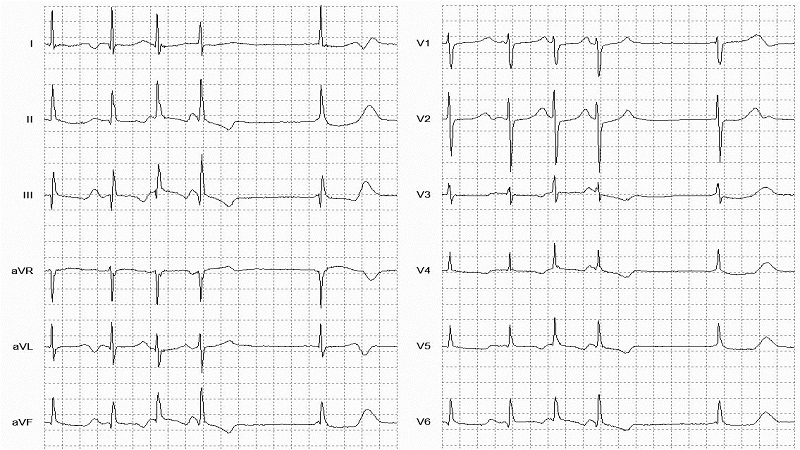

Nodal (junctional) escape beat 12 Lead EKG
